Gillo GF : 25 Inch Riser : JB50

Gillo GF 25 Recurve / Barebow Riser

The Gillo GF 25 recurve/barebow riser.

ILF Limbs compatible

Floating limbs pockets allow up to more than 40% poundage adjustment range

Integrated shock absorbers

25.80” length, RH and LH versions (longer string length required)

Body and Pockets machined from solid Aluminum bar

Matte sandblasted anodized surface

Aluminum 7075 Limbs alignment plates

“The Tunnels” perpendicular holes for round balancing plugs

Special round seats on lower part for optional balancing weights

Stainless steel limbs bolts assembled in AL 7075 black anodized bodies

Hard Wood, stratified G03-MG-M slim advanced grip

1 front stabs bushings, 1 back stabs bushing, both made by Stainless Steel Gold color Titanium Nitride coated

2 special Black anodized Aluminum plugs model G24-TP-01-BK, 5/16 24 tapped, to fit the Tunnels, are included as accessories.

Front center stabilizer bushing 1mm off from axis for perfect balance

Compatible to all G1, G2, GQ, G5 and GT Bare Bow weights, grips and accessories

Approx. 1440 gr mass weight

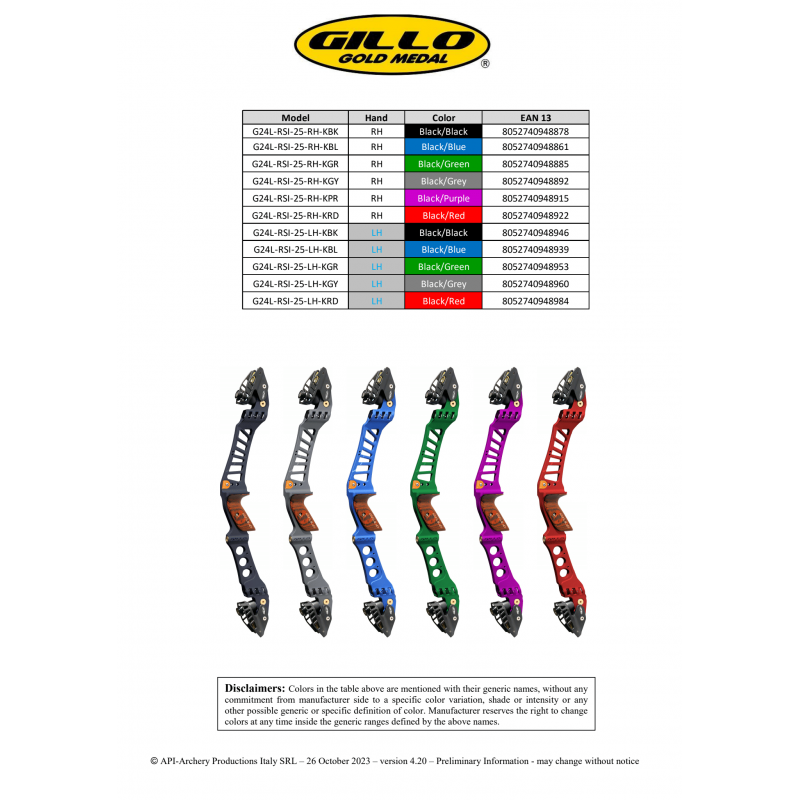

Dual Color versions RH: Blue (KBL), Grey (KGY), Purple (KPR), Green(KGR), Red (KRD)

Total Color Black (KBK) version, RH and LH

Dual Color versions LH: Grey (KGY), Red (KRD), Blue(KBL), Green(KGR)

Packing includes also long clicker plate, Manual with Warranty card, GRS-03 riser protection sleeve, 4 Allen wrenches, 5 clicker and BB

weights SS screw, 8 Transversal weights locking grub screws, 2 bolt locking Brass grub screws, 2 x G24-PP-01-BK Plastic plugs

Optional accessories available:

G04-DK6-AL/SS 6 disk weights kit (Al Black, SS Gold)

G01-DK6 6 Stainless Steel disk weights kit

G05-DK2 2 steel disk heavy weights kit

G03-DK2-TG 2 Tungsten disks Gold color

G02-CKK Plastic cliker plates in different colors and length

G01-BW-01 Bare Bow covers from 270 gr to 830 gr

G01-BW-02 Bare Bow Covers from 400gr to 1170 g

G03-BW-03 “The Hammers” Bare bow kit, AL or SS

G04-BW-04 Bare Bow covers from 300 to 950 g

G24-BW-05 Bare Bow plug shaft, Stainless Steel

G24-BW-06 Bare Bow Neoprene amortized shaft and weights

Various Plugs to cover bottom weights holes, made by wood or plastic 3D printed in various colors

Various grips made by wood or plastic 3D printed in various colors
